Eccentric power press punching |

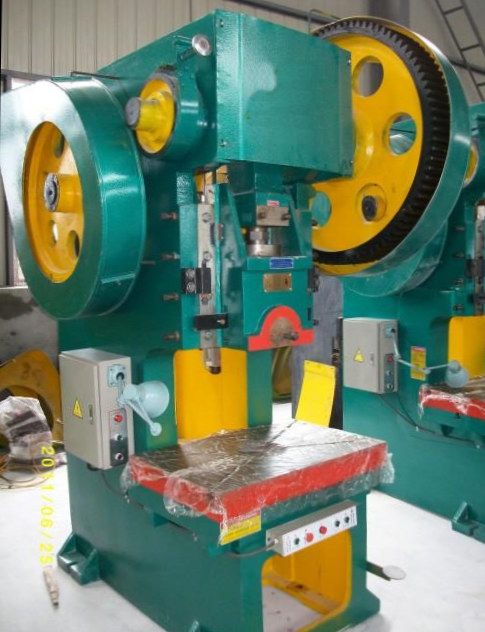

C FRAME ECCENTRIC POWER PRESS J21-INCLINABLE TYPE:
Use: 1. Suitable for various cold stamping process :blanking, punching, molding, bending, pulling and stretching etc.
2. Widely used in electronic components, instruments and meters, vehicles,
machinery, agricultural machinery ,hardware tools, and other industrial fields.
Structure:1.Welded body with steel plate ,higher strength and stiffness.
2.C type body, convenient for the processing of the die with larger size material
3. Adopts horizontally placed crankshaft, easily maintain.
4. Rigid clutch, simple structure
5. Casting body, stable performance
6.Fixed with the slide,the overload protector will be damaged to protect the machine from overloading.
Feature: 1.Higher strength and stiffness. economical presses.
2.Simple structure, excellent versatility,and easy to maintain and operate
PARAMETERS:
|
Model |
Unit |
J21-63ton |
J21-80ton |
J21-100ton |
J21-125ton |
J21-160ton |
J2-200ton |
|
|
Nominal force |
kN |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
|
|
Stroke under nominal force |
mm |
4 |
5 |
5 |
6 |
6 |
6 |
|
|
Slide block stroke |
mm |
80 |
100 |
100 |
120 |
140 |
160 |
|
|
Number of stroke |
times/min |
50 |
50 |
40 |
38 |
40 |
36 |
|
|
Max die set height |
mm |
250 |
300 |
300 |
320 |
350 |
390 |
|
|
Die set height adjustment |
mm |
50 |
60 |
80 |
100 |
110 |
110 |
|
|
Distance from slide block center to the frame |
mm |
250 |
260 |
310 |
350 |
380 |
400 |
|
|
Workable dimensions(F·B×L·R) |
mm |
440*670 |
470*750 |
570*860 |
650*1000 |
710* |
740*1300 |
|
|
Dimensions of worktable |
mm |
Φ180 |
Φ180 |
Φ180 |
Φ200 |
Φ220 |
Φ180 |
|
|
Thickness of bolster |
mm |
70 |
80 |
90 |
110 |
130 |
160 |
|
|
Dimensions of slide block(F·B×L·R) |
mm |
240*280 |
260*300 |
360*450 |
420*520 |
440*560 |
580*760 |
|
|
Size of the handle hole(Diameter×Depth) |
mm |
Φ50*70 |
Φ60*80 |
Φ60*80 |
Φ60*80 |
Φ65*90 |
Φ65* |
|
|
Distance between columns of body |
mm |
320 |
360 |
460 |
520 |
640 |
740 |
|
|
Motor |
Type |
|
Y132S-4 |
Y132M-4 |
Y132M-4 |
Y160L-6 |
Y180L-6 |
Y200L1-6 |
|
Power |
Kw |
5.5 |
5.5 |
7.5 |
11 |
15 |
18.5 |
|
|
Outline dimension(F·B×L·R×H) |
mm |
1440*1100 |
1650*1265 |
1820*1400 |
1900*1650 |
2040*1765 |
2380*1950* |
|
|
Net weight |
kg |
4150 |
5400 |
6420 |
9500 |
12500 |
16200 |
|
