CNC laser cutting machine-Full closed

Introduction

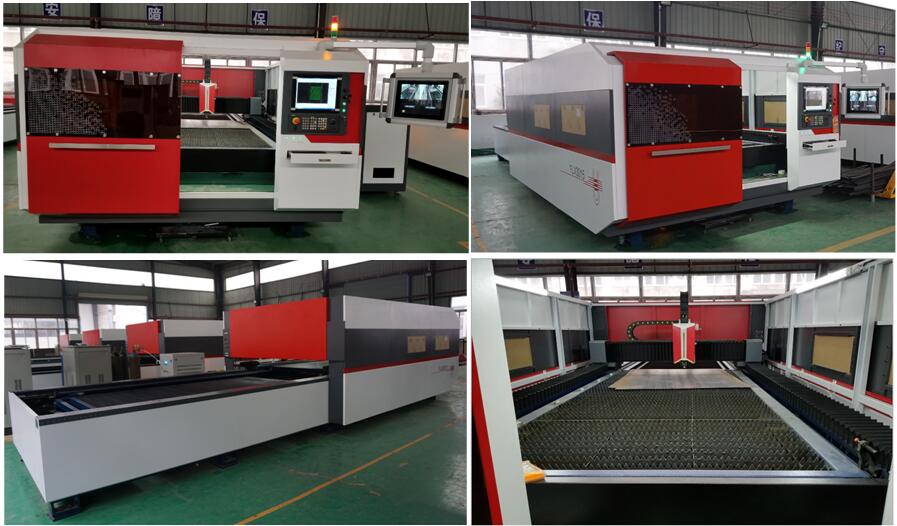

CNC Fiber Laser Cutting Machine: FLX-Full Closed CNC Fiber laser cutting machine with double exchange table.


This series cnc laser cutting machine consists of Closed machine body, cabinet box with air condition, water chiller, voltage stabilizer and exchangeable working tables.

It functions by working highly focused energy and density spot of laser onto metal work pieces, causing the thermal zone melt and vaporized. Under mechanical motion control, automatic laser cutting is realized. It is currently one of most advanced processing technologies which involves Fiber Optics, CNC Control and Precision Mechanics

Product Features:

1. Rigid machine body obtained through standard annealing process in high - temperature electric furnace, ensuring precision in the long term

2. Imported original fiber laser generator with super beam quality and stable performances, laser passes through fiber without reflectors, free of light path adjustment, maintenance free, service life up to 100,000 hours

3. Photoelectric Conversion Efficiency (PCE) by 30%, far more higher than CO2 laser or YAG, which saves much of energy cost.

4. Imported precision motion parts and servo motors, which support high-speed running

5. Capable of cutting various graphics and words, which makes work simple , flexible, and convenient.

6. Smooth cut without deformation.

7. Extremely low energy cost, which accounts only 1/3-1/5 of YAG machine if output powers were the same, environment-friendly.

8. Solid-state laser type, which supports multimode integration with multimode power outputs, able to cut a variety of sheets with fair speed. In addition, it supports air cutting thin sheets, greatly shortening period of ROI (return of investment)

Application Materials:

Able to cut a variety of sheet metals, pipes ( By adding a pipe clamping device ), mainly for stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, various alloy plates, rare Metal and other materials.

Application Field:

Widely used in electrical equipment, kitchen, elevator, advertising signs, auto decoration, sheet metal production, lighting hardware, display equipment, precision parts, metal products and other industries.

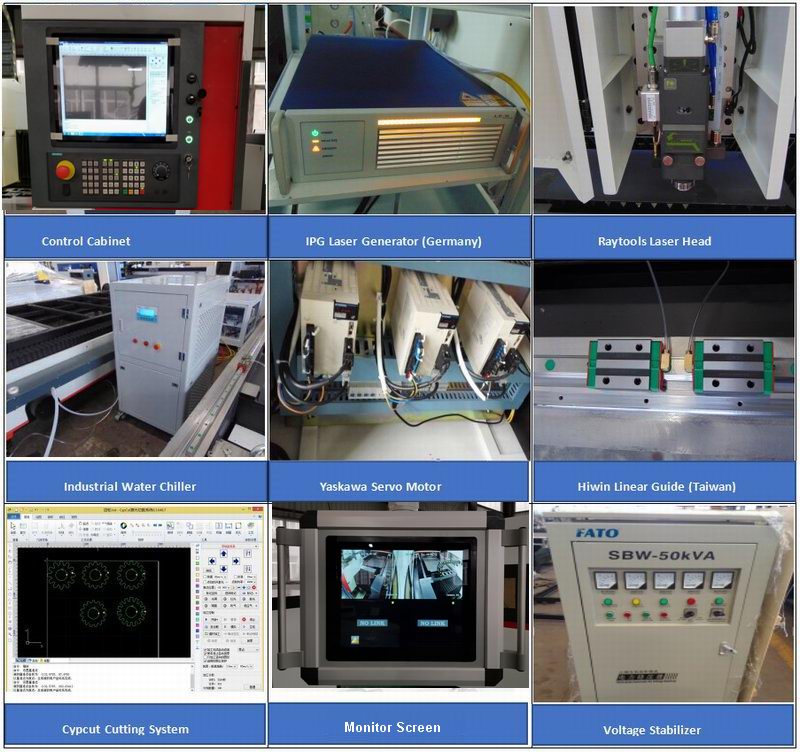

Configures:

Parameters:

Model

FLX-3015-700W

FLX-3015-1000W

FLX-3015-1500W

FLX-3015-2000W

FLX-3015-3000W

Working Size

3000*1500mm

3000*1500mm

3000*1500mm

3000*1500mm

3000*1500mm

Optional Size

2500*1300mm

4000*1500mm 4000*2000mm
6000*2000mm

4000*1500mm
4000*2000mm
6000*2000mm

4000*1500mm
4000*2000mm
6000*2000mm

4000*1500mm
4000*2000mm
6000*2000mm

Laser Generator

IPG/Raycus/n-light

IPG/Raycus/n-light

IPG/Raycus/n-light

IPG/Raycus/n-light

IPG/Raycus/n-light

Transmission

  X/Y Rack and pinion, Z ball screw drive

Re-locating Accuracy

±0.03mm

±0.03mm

±0.03mm

±0.03mm

±0.02mm

Max Traveling Speed

120m/min

120m/min

120m/min

120m/min

120m/min

Acceleration

1.0G

1.0G

1.0G

1.0G

1.5G

Power Supply

AC380V/50(60)HZ

AC380V/50(60)HZ

AC380V/50(60)HZ

AC380V/50(60)HZ

AC380V/50(60)HZ
