CNC LIGHT POLE DOOR AND BASE PLATE CUTTING MACHINE, MODEL : 300/2500
 |
| APPLICATIONS & USAGE | MAIN PARTS |
|
◆Cut the electric inspection door on the lighting poles ◆Octagonal and conic poles can be work both ◆Cut the base plate of the lighting poles ◆Max cutting diameter of lighting pole:Ø300mm ◆Max cutting length of lighting pole:12m (customized) |
➢Lighting pole supporting bench ➢Lighting pole clamping-rotate-positioning device ➢CNC Plasma cutting power source ➢CNC Controller ➢ARC Height adjusting device |
|

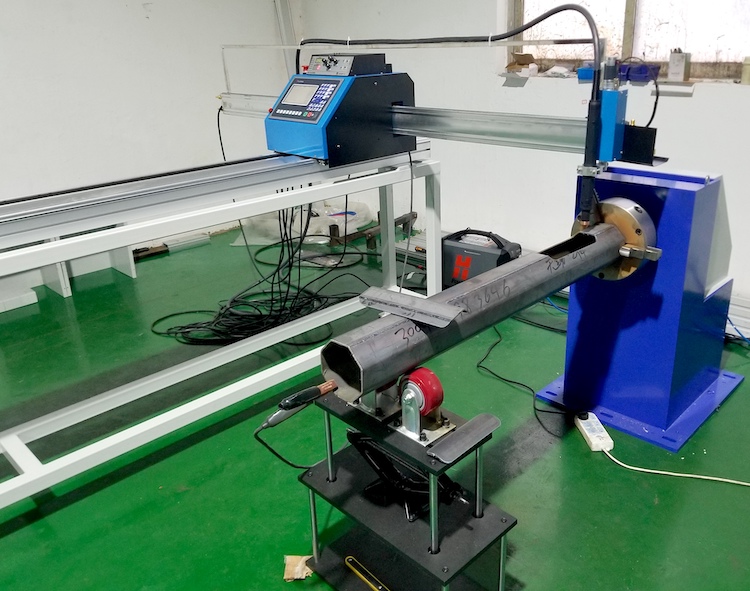

Electric inspection door cutting on octagonal pole |
Electric inspection door cutting on conic pole |
 |
 |

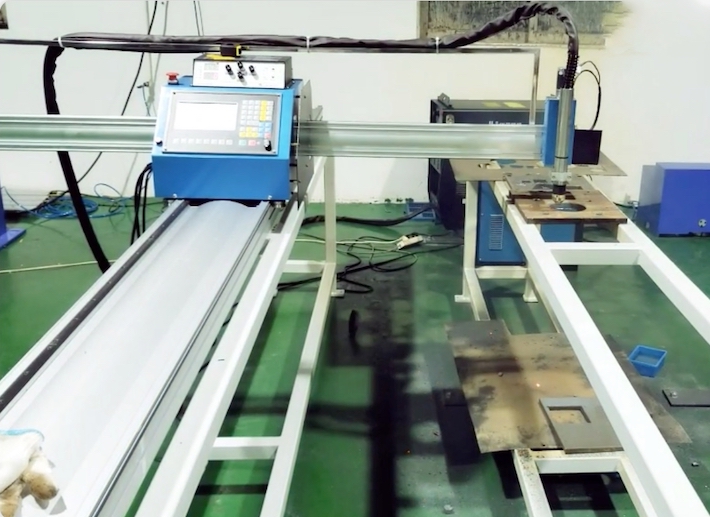

| Light pole base plate cutting |
 |
| PARAMETERS |
|
Model |
GB250 |
GB400 |
|
Chuck motor type |
Servo motor + reducer |
Servo motor + reducer |
|
Input voltage |
Single phase AC 220V |
|
|
Cutting tube length |
Customized according to requirements |
|
|
input power |
About 800W |
|
|
Chuck size |
Φ250mm |
Φ380mm +Land |
|
Pipe diameter |
Φ50～Φ300mm |
Φ60～Φ500mm |
|
Maximum pipe weight |
≤300kg |
≤500kg |
|
Custom information |
If you have other sizes, weights, and tube requirements, please contact our sales staff, we will provide you with a more comprehensive customized solution |
|
|
Cutting type |
Plasma cutting (need to be equipped with plasma power supply) Flame cutting can be used interchangeably |
|
|
Reduction ratio |
1:20 |
1:20 |
|
Rated rotation speed |
0-10rpm（Can be adjusted according to actual needs） |
0-7.5rpm（Can be adjusted according to actual needs） |
|
Tube ovality |
≤2% |
|
|
Number of pipe supports |
Provided according to usage |
|
|
Number of CNC control axes |
2-axis linkage |
|
|
Torch lifting stroke |
≤120mm |
|
|
Running accuracy |
±0.2mm/m |
|
|
Flame cutting thickness |
Perforation capacity: 5-60mm Edge cutting: 5-120mm |
|
|
Plasma cutting thickness |
Depends on the cutting ability of the plasma power supply |
|
|
Plasma arc voltage increase |
Optional |
|
|
Gas supply requirements |
The upper limit of acetylene pressure or propane pressure does not exceed 0.1Mpa |
|
|
Oxygen supply requirements |
The upper limit of oxygen pressure does not exceed 0.7Mpa |
|
|
Cutting table |
Provide pipe cutting support frame and fixture with split design |
|
